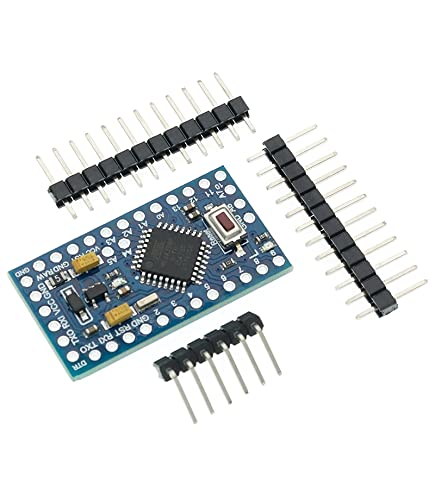

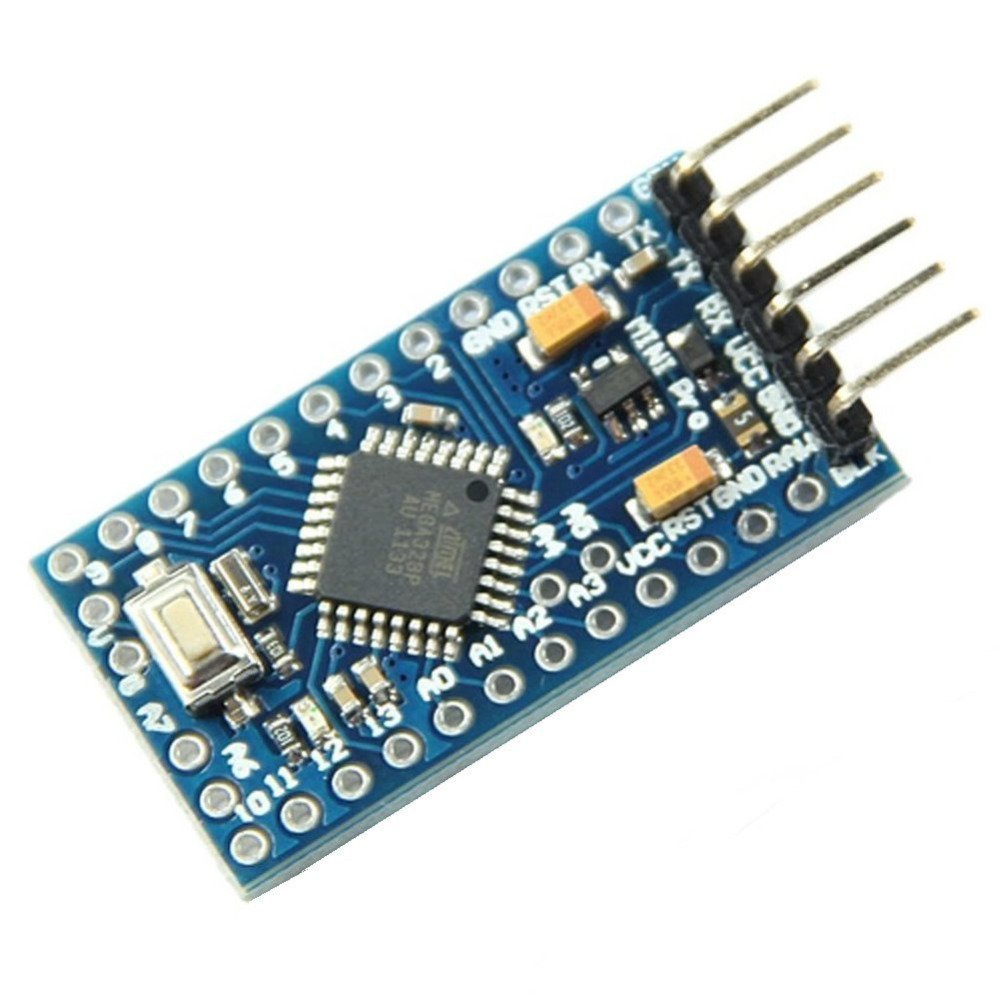

Robojax ATMEGA328P Pro Mini 328 Mini 3.3V 8MHz for Arduino Compatible Board (3.3V 8MHz)

Brand: ROBOJAX

Features:

• Arduino Compatible ATmega328 running at 3.3V 8MHz
• USB connection off board Weighs less than 2 grams!
• Max 150mA output Over current protected
• Over current protected DC input 3.3V up to 12V
• Analog Pins: 8 Digital I/Os: 14
• Full datasheet https://ww1.microchip.com/downloads/en/DeviceDoc/Atmel-7810-Automotive-Microcontrollers-ATmega328P_Datasheet.pdf

Part Number: STM32-USB

Details: Description

Because it doesn't have built in USB it is cost effective and small Arduino compatible board. ATmega328 running at 8MHz with external resonator (0.5% tolerance) Low-voltage board needs no interfacing circuitry to popular 3.3V devices and modules (GPS, accelerometers, sensors, etc) 0.8mm Thin PCB USB connection off board Weighs less than 2 grams! Supports auto-reset 3.3V regulator Max 150mA output Over current protected DC input 3.3V up to 12V On board Power and Status LEDs Analog Pins: 8 Digital I/Os: 14

EAN: 0081616259853

Package Dimensions: 2.8 x 2.4 x 0.8 inches
