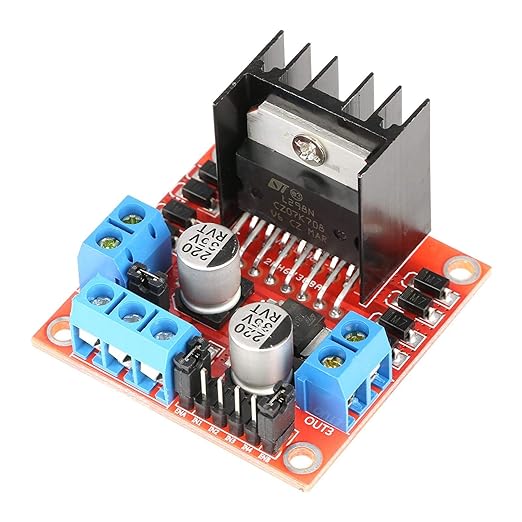

L298N Motor Driver Board - Dual H-Bridge Stepper Motor Controller

The L298N Motor Driver Board is the perfect solution for controlling and powering your stepper and DC motors with ease. Whether you're building a robot, a 3D printer, or any other project that requires motor control, this versatile board has got you covered.

Features:

• Dual H-Bridge Design: The L298N chip provides dual H-bridge motor control, allowing you to control two motors independently.

• Voltage Range: Supports a wide input voltage range (7V to 35V) and can handle a maximum current of 2A per channel.

• Versatile Compatibility: Works with various motor types, including stepper, DC, and hybrid step motors.

• Built-in Protection: Equipped with built-in flyback diodes and overcurrent protection to safeguard your motors and the board.

• Easy Wiring: Clearly labeled terminal blocks make it simple to connect your motors and power supply.

• Heat Sink Included: A heat sink is included to help dissipate heat generated during operation.

Package Includes:

• 1 x L298N Motor Driver Board
• 1 x Heat Sink
• Terminal Jumpers

Dimensions:

• Board Size: 43mm x 43mm

Applications:

• Robotics
• 3D Printers
• CNC Machines
• Smart Cars
• Automation Projects

Installation Guide:

1. Connect your motors to the terminal blocks, ensuring proper polarity.
2. Connect your power supply (7V to 35V) to the input terminals.
3. Connect your control signals to the IN1, IN2, IN3, and IN4 pins.
4. Ensure proper power and ground connections.
5. Secure the heat sink using the provided hardware.
6. You're ready to control your motors!

Note: Please refer to the product datasheet for detailed specifications and usage instructions.

Why Choose Us:

Our L298N Motor Driver Board is a reliable and cost-effective solution for your motor control needs. Backed by our commitment to quality and customer satisfaction, you can trust that your projects will run smoothly with our motor driver board.

Shipping and Returns:

• We offer fast and reliable shipping to ensure your project gets started as soon as possible.
• If you're not satisfied with your purchase, we offer a 30-day return policy.

Get started on your motor-driven projects with the L298N Motor Driver Board today. Add it to your cart now!
