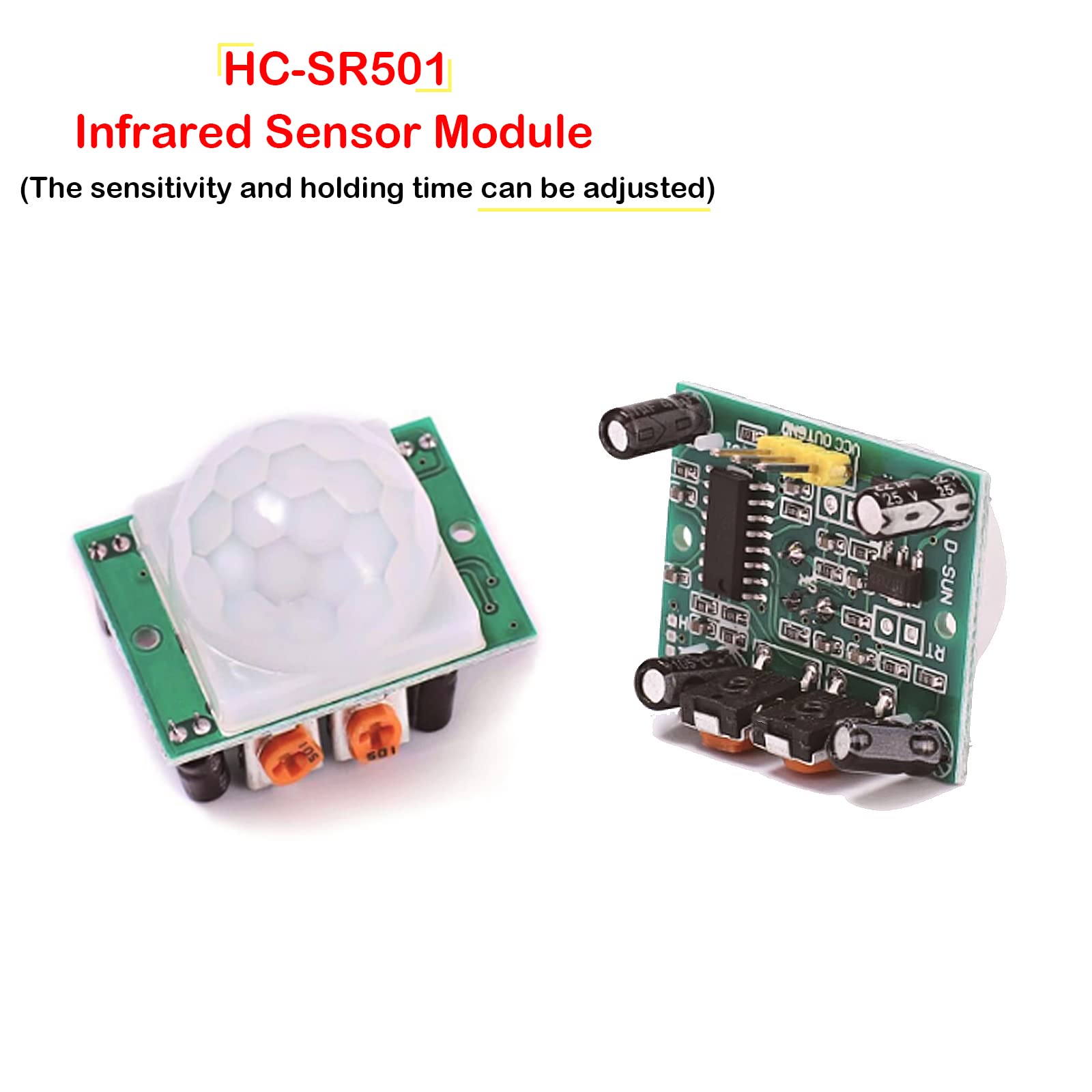

Geekstory HC-SR501 PIR Infrared Sensor Body Infrared Motion Module for Arduino Raspberry Pi(Pack of 5pcs)

Brand: Geekstory

Features:

• ▶Human body infrared sensor module is an automatic control product based on infrared technology. The working principle: Automatic induction: When someone enters its induction range, enter the high level, people leave the sensor range is automatically delayed off high. Output low
• ▶Features: high sensitivity, high reliability, ultra low power consumption, ultra low voltage operation mode.Operating voltage range: DC 4.5-20V (Attention: Although the human body is not in front of the module, but the human body from the module is too close to the module can also be caused by the sensor output. The human body sensor can only work indoors and the work environment should avoid the sun, a strong direct light exposure.)

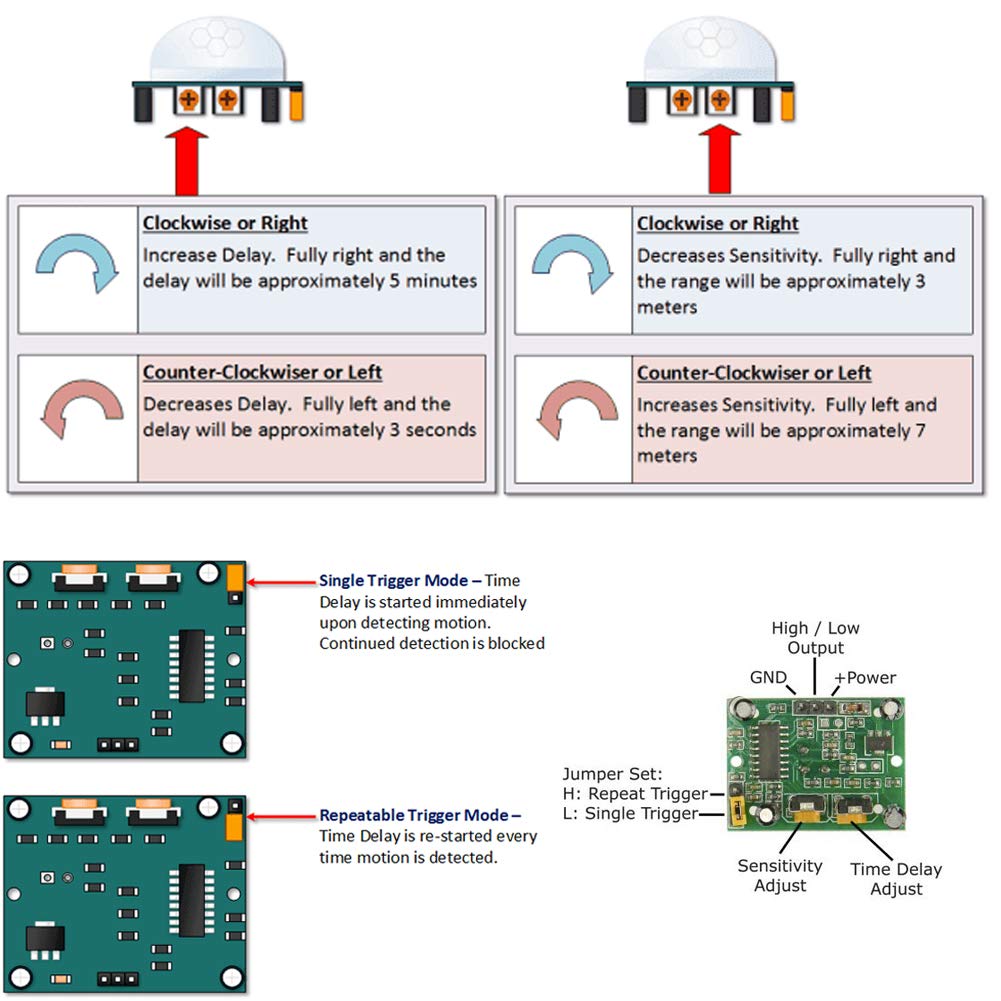

• ▶Two trigger modes: L is not repeatable, H is repeatable, the default is H. Output high-level signal: can be easily with various types of circuits to achieve docking

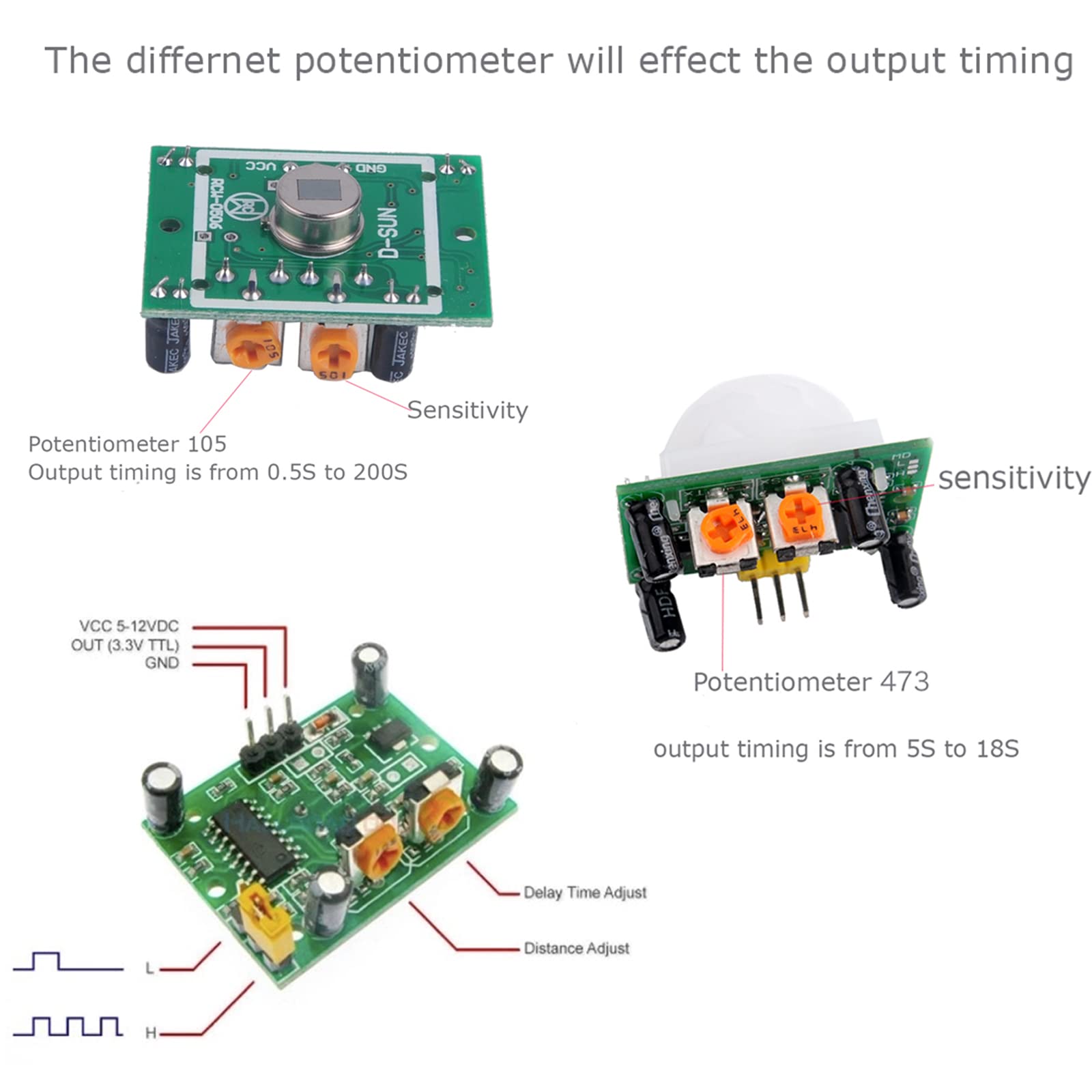

• ▶Induction blocking time 0.5-200 seconds (adjustable); After each sensing output (high level goes low), the sensing module can be followed by a blocking time, during which it is sensed The device does not receive any sense signals

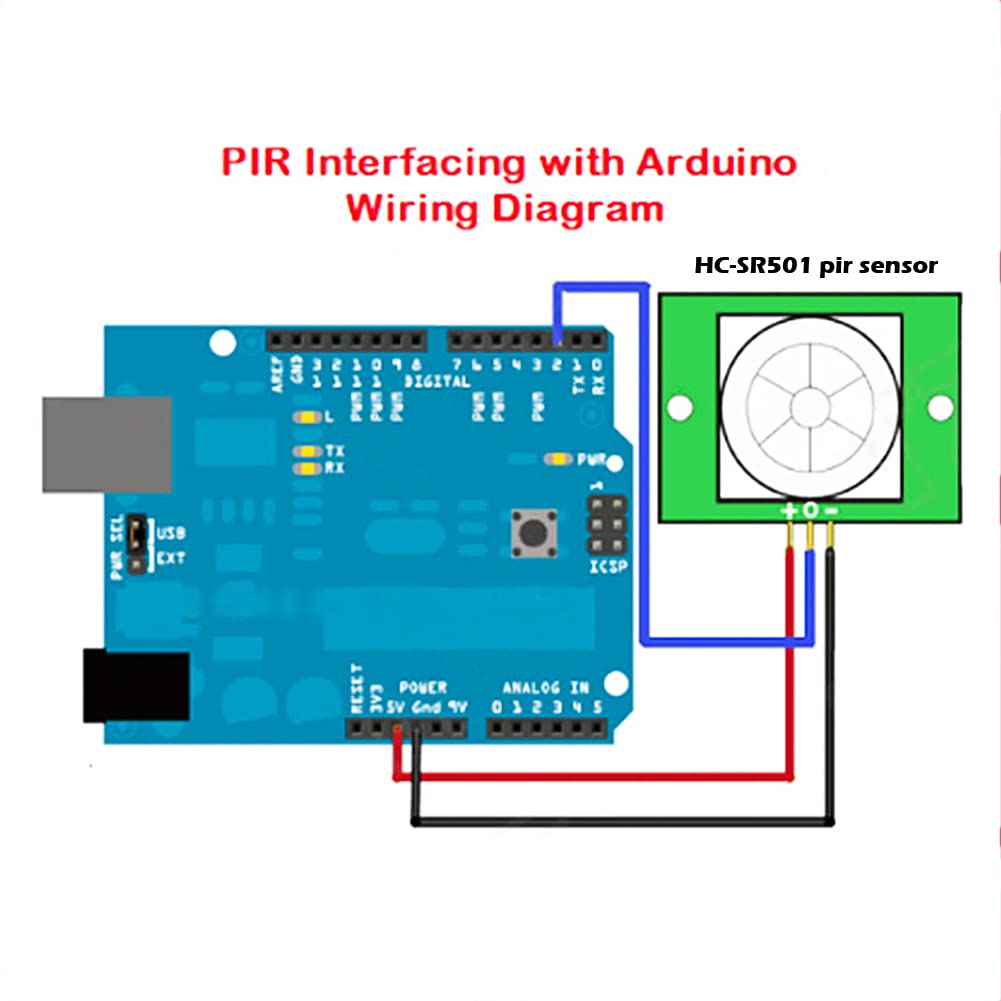

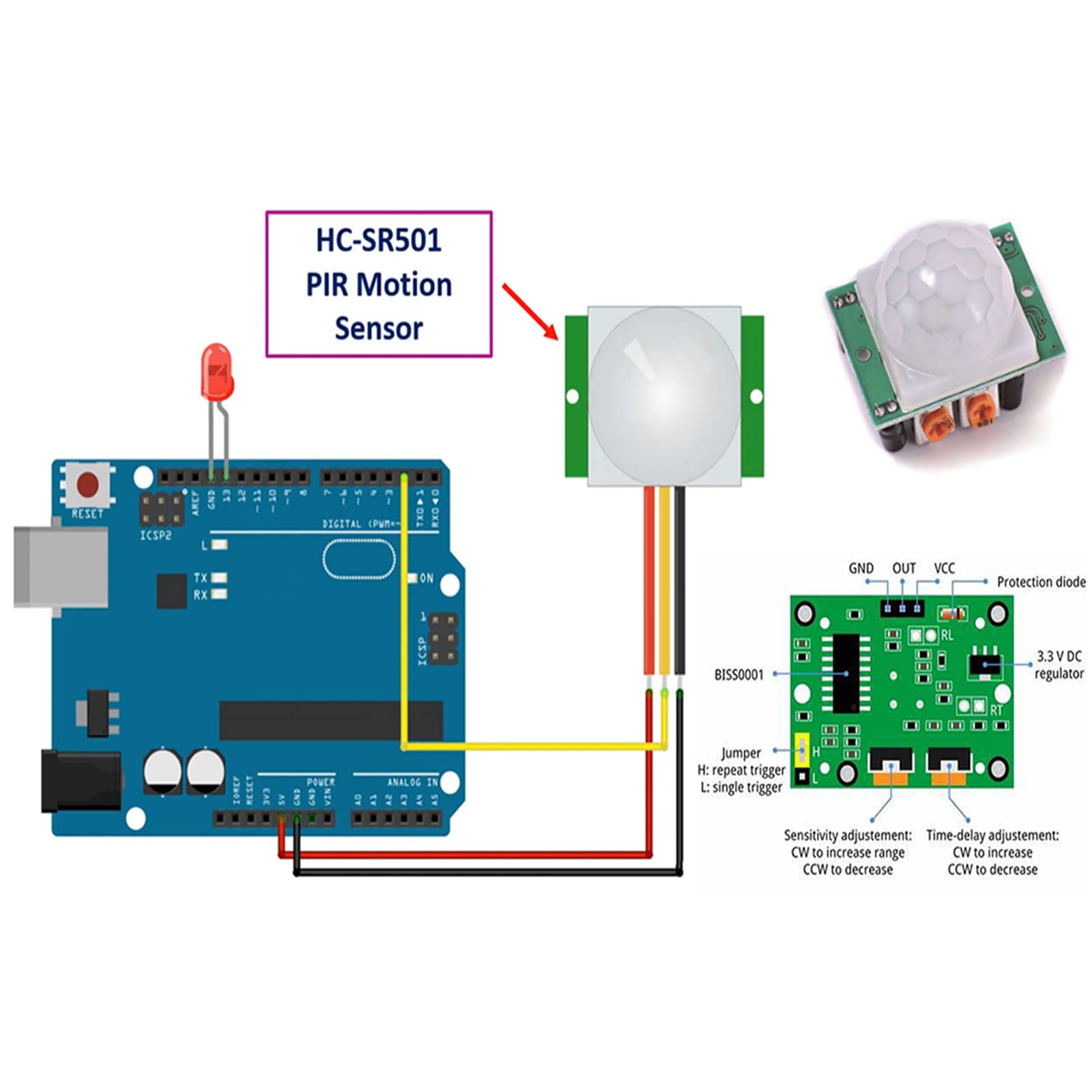

• ▶Widely used in various types of automatic induction electrical equipment. For example, Security Products, Human body sensor lighting industrial automation and control, etc. It can automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors,etc. compatible with Arduino, Raspberry Pi, PIC and more
• ▶If you have any issue when using our product,or you need product use documentation, Please click “Ask a question”

Binding: Tools & Hardware

model number: FZ0057X5

Part Number: FZ0057X5

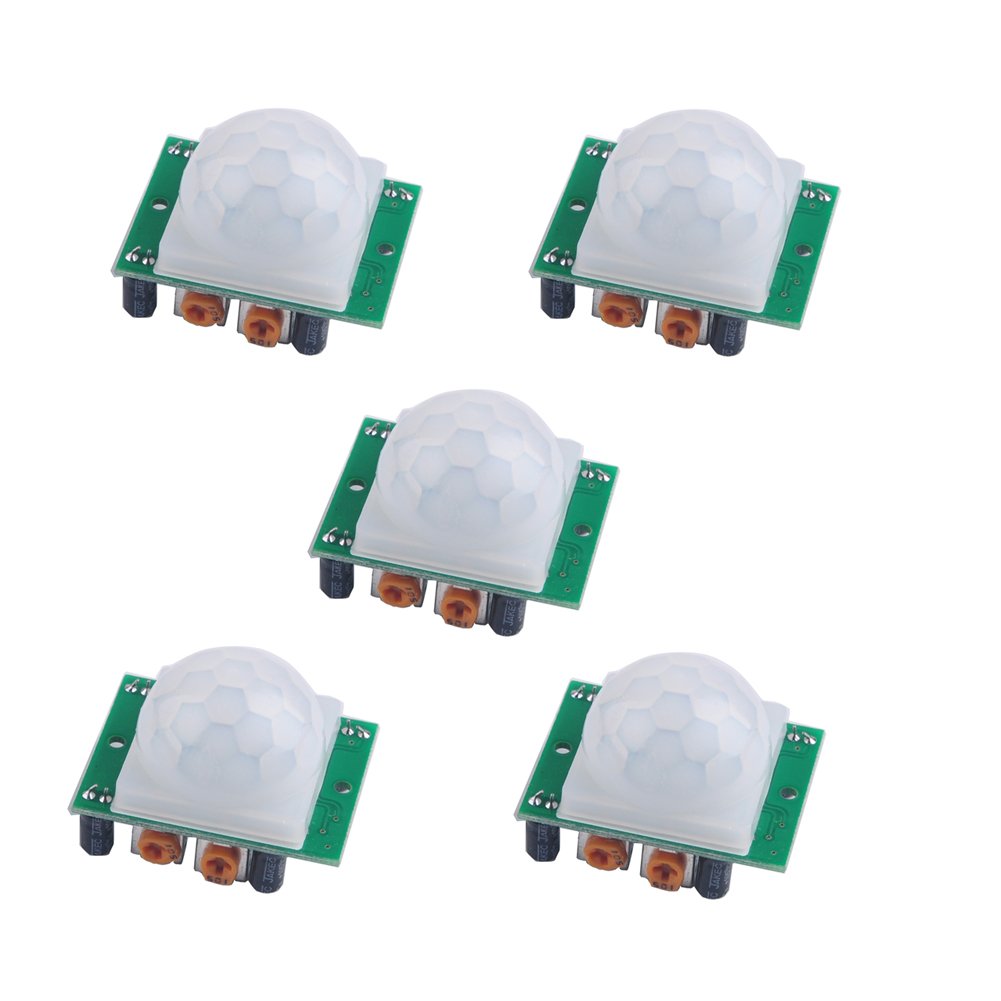

Details: Product Description: Condition:100% brand new with good quality Product Type: HC--SR501 Body Sensor Module Operating voltage range: DC 4.5-20V Quiescent Current: <50uA Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger) Delay time: 0.3-200S(adjustable) the range is (0.xx second to tens of second) Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds Board Dimensions: 32mm*24mm Angle Sensor: <100 ° cone angle Lens size sensor:Diameter:23mm(Default) Applications: Security Products Human body sensors toys Human body sensor lighting industrial automation and control, etc Use:It can automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors, electric fans, automatic washing machine and dryer Machines and other devices, is a hightech products. Especially suitable for enterprises, hotels, shopping malls, warehouses and family aisles, corridors and other sensitive Sense of region, or for the security zone automatic lighting, lighting and alarm systems NOTE: On this retrigger jumper is a solder jumper, and you need solder it by yourself Package Included: 5 X HC-SR501 PIR Infrared Sensor

Package Dimensions: 4.8 x 3.1 x 1.3 inches
